Video

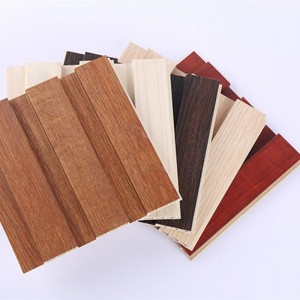

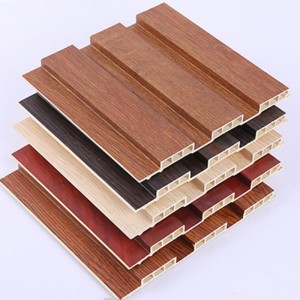

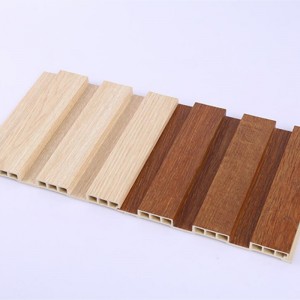

Interior Wall Panel is one kind It is a wall decoration material, the main material is wood-plastic material (wpc), a new environmentally friendly material. wood color, cloth pattern, stone colors are available for choose, and it has the advantages of waterproof, termite, silent, easy install, etc. Widely used in home improvement and commercial places
Interior Panel Parameter
| Product name | Interior Wall Panel, |
| Model | Waterproof Wpc Wall |
| Size | 2900*204*12mm |
| Surface | Pvc Film Laminated |
| Material | WPC: Wood Pvc Composite. A mix of wood flour and poly ethylene with the addition of certain additives |
| Color | Oak,Gold, Mahogany, Teak, Cedar, Red , Classic grey, Black walnut |
| Minimum order | Full 20ft Container , 500 meters per Color |
| Package | Standard canton |
| Water absorption | Less than 1% |
| Flame- retardant level | Level B |
| Payment term | 30%T/T in advance,remainder 70% paid before shipment |
| Delivery period | Within 30 days |
| Remark | The color and the size can be changed according to your request |
| Application
Advantage
|
Hotels, commercial buildings, hospital, schools, home kitchen, bathroom, interior decoration and so on |
| 1) Dimensional stability, longevity, natural feel | |
| 2) Resistance to rot and crack | |
| 3) Stable over a wide temperature range, weather-resistant | |
| 4) Moisture resistant, low flame spread | |
| 5) High impact resistant | |
| 6) Outstanding screw and nail retention | |
| 7) Environmentally friendly, recyclable | |
| 8) Broad range of finished and appearance | |
| 9) Easily produced and easily fabricated | |
| 10) Contains no toxic chemicals or preservatives |
Interior Wall Panel Effect Picture
The Advantage of Wall Panel
Wpc Wall Panel Production Process
Application
Project 1
Project 2
Cloth Colors
Installation
1.Interior Wpc cladding Panel Installation Video tutorial 1：
Directly Use an air nail gun directly to fix the nail on the edge of the wall panel lock to fix the wall
2.Interior Wpc Louvre Installation Video tutorial 2：
When the wall is uneven, apply styrofoam to the back of the Wpc Louvre board, and directly use an air nail gun to fix the nail on the edge of the wall panel lock to fix the wall
3.Indoor Wpc Wall Cladding Install Video tutorial 3：
Fix the Wall Cladding lock directly through the metal clips, if the flatness of the wall meets the installation requirements
The Accessories for Wpc Wall
1.Concave Line
2.L Edge
3.Metal Clips
The Wpc Wall Installation for Wall and Ceiling
The first step is to confirm whether the wall is flat. If the wall is flat, you can install indoor wpc wall panels directly on the wall. If the wall is uneven, you need to install wooden keels on the wall as a support first, and the distance between each keel must be 25 cm apart.
In the second step, since the indoor wpc wall panel is click lock installation, it is only necessary to fix the wall panel to the wall or the keel through the metal clips
The third step, when the first wall panel is fixed in the second step, after the second wall is inserted into the first wall panel lock, repeat the second step to fix the wall panel on the wall or keel
The fourth step, repeat the third step
| No | Characteristic | Technology Target | Remark | |||||
| 1 | Appearance | No chipping, cracking, visual texture, delamination, bubbles, shallow embossing, scratches, dirt, poor cut, etc | ENEN649 | |||||
| 2 | Size mm （23℃） | Length | ± 0.20mm | EN427 | ||||
| Wide | ± 0.10mm | EN427 | ||||||
| Thickness | +0.13mm, -0.10mm | EN428 | ||||||
| Thickness Range | ≤0.15 mm | EN428 | ||||||
| wearlay Thickness | ± 0.02 mm | EN429 | ||||||
| 3 | Squareness mm | ≤ 0.15 | EN427 | |||||
| 4 | Crook mm | ≤ 0.15 | EN427 | |||||
| 5 | Microbevel Cut Angle | 8-15 degrees | ||||||
| Microbevel Cut Depth | 0.60 – 1.5 mm | |||||||
| 6 | Dimensional stability after exposure to heat | ≤ 0.12% | EN434 | |||||
| 7 | Curling after exposure to heat | WPC:≤0.2(70℃/6Hr) | EN434 | |||||
| SPC:≤0.2(80℃/6Hr) | ||||||||
| 8 | Gloss level | nominal value ± 1.5 | Lightmeter | |||||
| 9 | Taber Abrasion - Minimum | 0.5mm wear lay | ≥5000 cycles Average | EN660 | ||||
| 10 | Uv | 8～12g/m2 | ||||||
| 11 | ≥9N | |||||||
| SCRATCH PERFORMANCE UV | SCLEROMETER | |||||||
| 12 | Anti-stain performance | Iodine | 3 | Modified ASTM 92 | ||||
| Oil Brown | 0 | |||||||
| Mustard | 0 | |||||||
| Shope Polish | 2 | |||||||
| Blue Sharpie | 1 | |||||||
| 13 | Determination of flexibility | no crack | EN435 | |||||
| 14 | Peel Resistance | Length | ≥62.5N/5cm | EN431（62.5N/5cm，100mm/s） | ||||
| width | ≥62.5N/5cm | |||||||
| 15 | Residual indentation (average) mm | ≤0.15 | EN433 | |||||
| 16 | Color fastness： | ≥7 | ISO105-B2：2002 | |||||
| 17 | Locking Strength | fsmax ≥2 .5N/mm | ISO24344 | |||||
