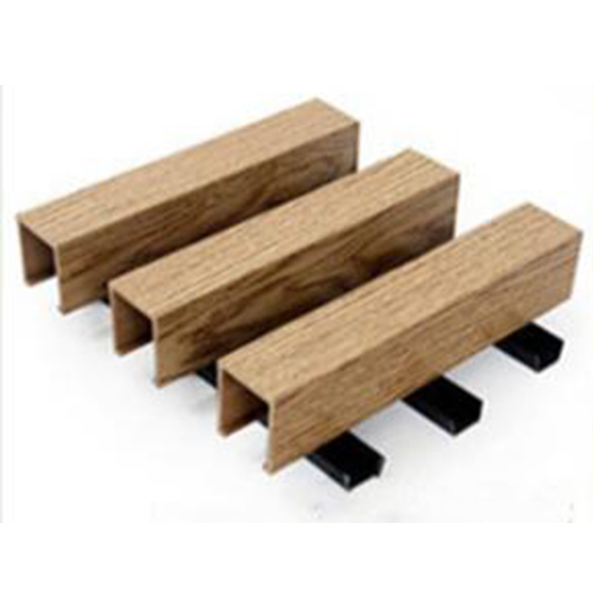

What is Pvc false ceiling?
Pvc false ceiling is one of the ceiling materials produced in recent years. Pvc ceiling has an open field of vision, ventilation, and air permeability. Its lines are crisp and neat, and the layers are clear. It embodies the simple and clear modern style. It is easy to install and disassemble. The main product popular in the decoration market.
False ceiling can be divided into aluminum ceiling and pvc ceiling.

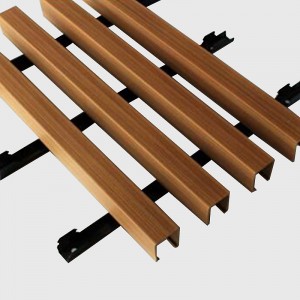

Pvc ceiling is extruded, and the installation structure is a special keel snap-in structure. The installation method is similar to an ordinary strip gusset, simple and convenient, and suitable for interior decoration (the keel can be designed with a windproof card code).
To install different wpc pvc ceilings, you can choose different heights and spacings, one high and one low, one sparse and one dense, plus a reasonable color combination, so that the design is ever-changing, and different decorative effects can be designed. At the same time, because the ceiling is transparent, lamps, air conditioning systems, and fire fighting equipment can be placed in the ceiling to achieve a consistent and perfect visual effect.
The aluminum square pass is simple to install, and the maintenance is also very convenient. Because each aluminum square pass is separate, it can be installed and disassembled at will without special tools, which is convenient for maintenance and maintenance.
Features:

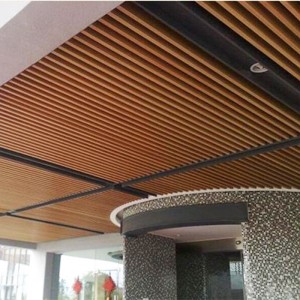

It is used for concealed projects in public places with many crowds, which is convenient for air circulation, exhaust, and heat dissipation. At the same time, it can distribute the light evenly and make the whole space spacious and bright. It is widely used in subways, high-speed railway stations, railway stations, airports, large shopping malls, passages, leisure places, public restrooms, hotels, school restaurants, building exteriors and other open places.

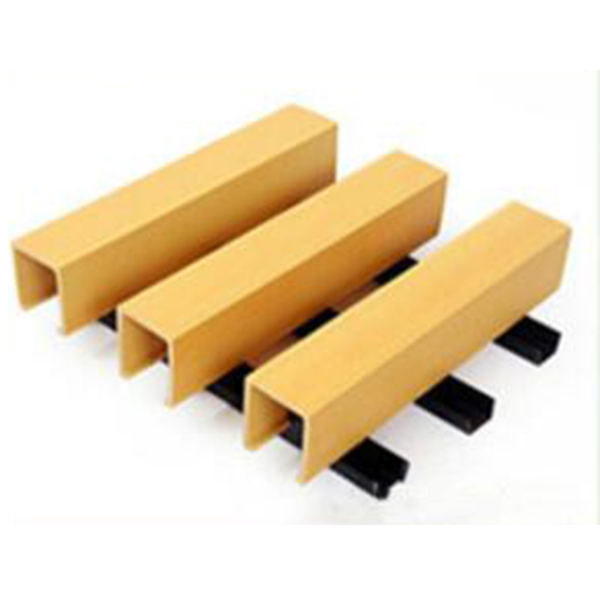

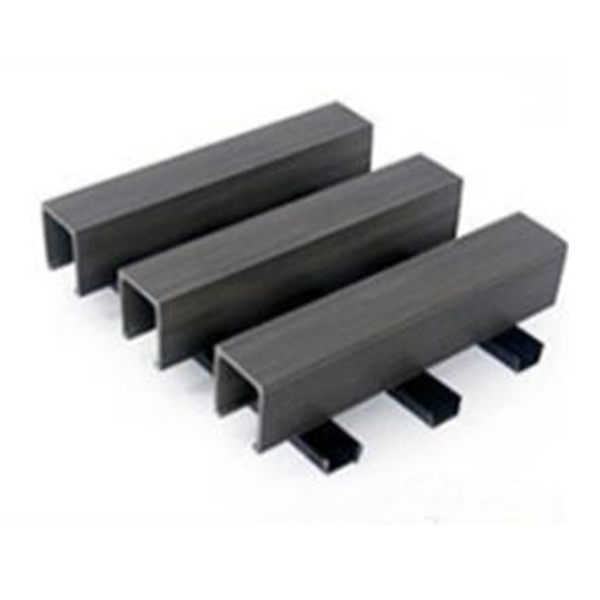

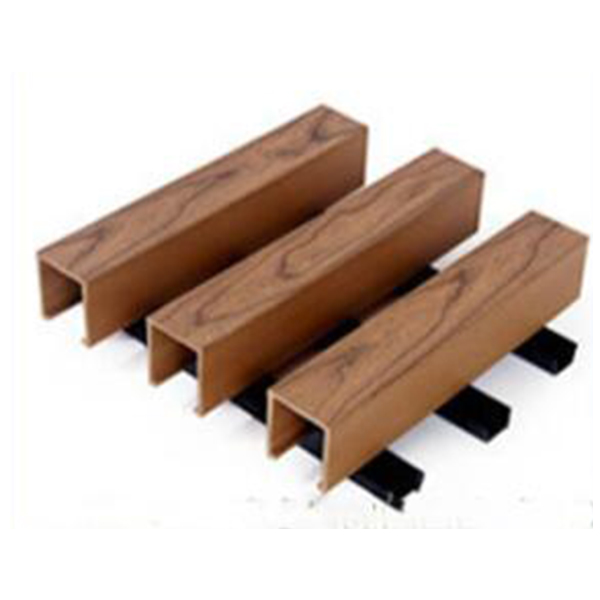

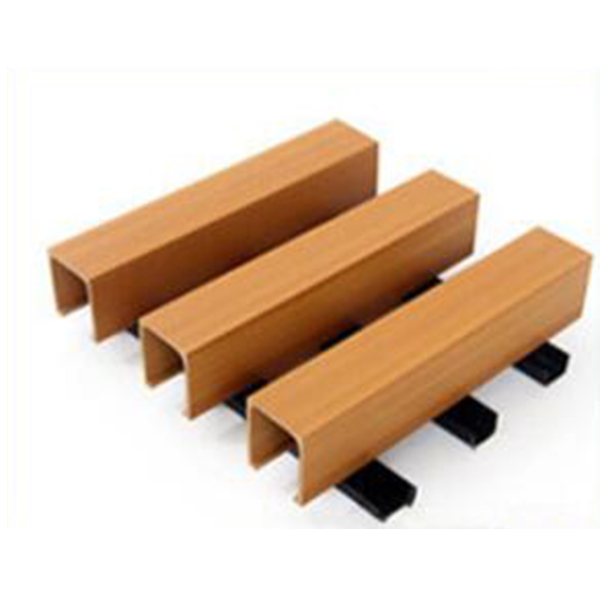

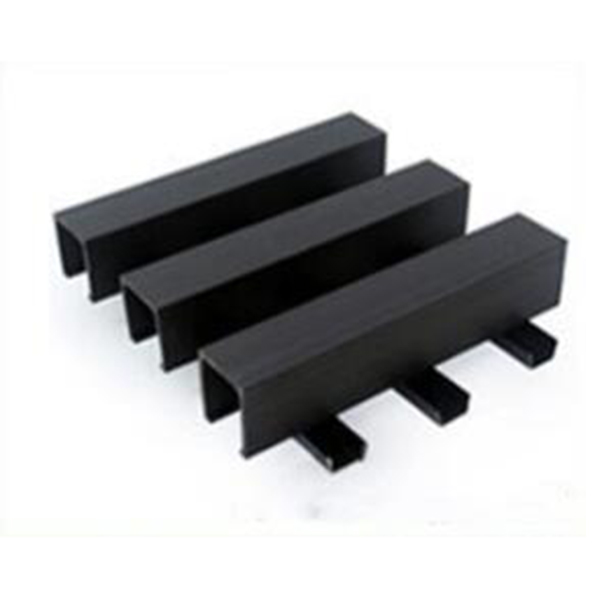

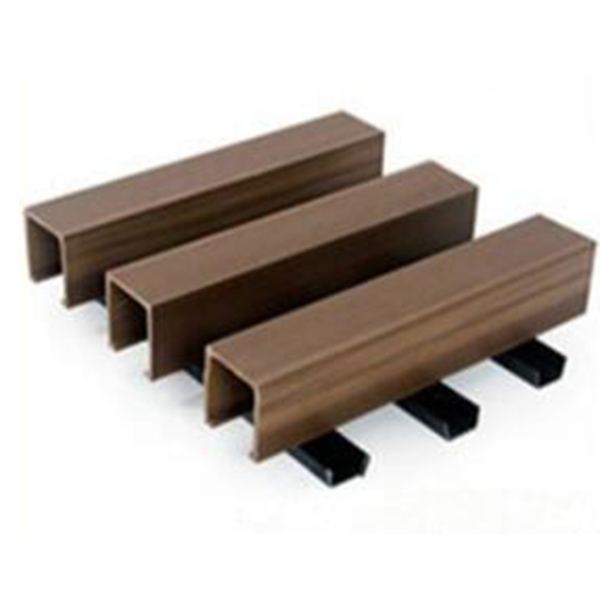

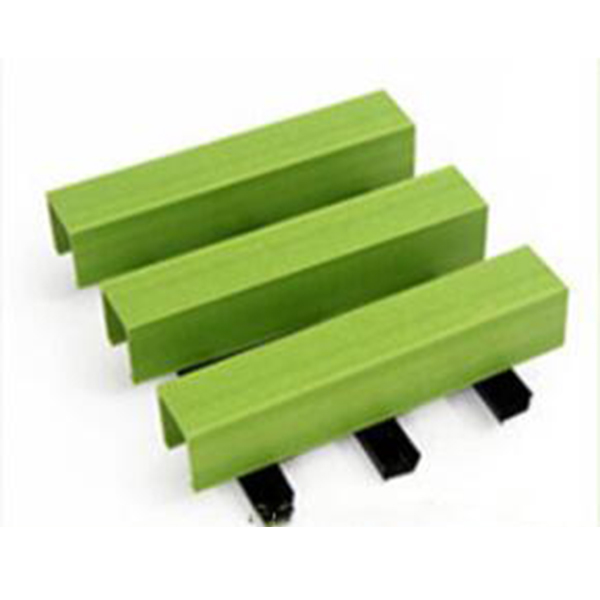

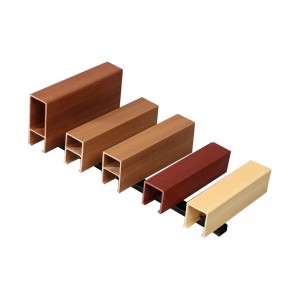

Multiple Colors
Size
Detail Image
Specification
Brand name | DEGE |
Item name | Indoor Ceiling |
Model | Wpc Ceiling |
Size | 90*50mm |
Material | WPC |
Length | 3000mm |
Color | Gold, Mahogany, Teak, Cedar, Red , classic gay, black |
Minimum order | 350 square meters |
Package | Standard canton |
Water absorption | Less than 1% |
Flame- retardant level | Level B |
Payment term | 30%T/T in advance,remainder 70% paid before shipment |
Delivery period | Within 30 days |
Remark | The color and the size can be changed according to your request |
Application | Indoor |
Features | 1) Dimensional stability, longevity, natural feel |
2) Resistance to rot and crack | |
3) Stable over a wide temperature range, weather-resistant | |
4) Moisture resistant, low flame spread | |
5) High impact resistant | |
6) Outstanding screw and nail retention | |
7) Environmentally friendly, recyclable | |
8) Broad range of finished and appearance | |
9) Easily produced and easily fabricated | |
10) Contains no toxic chemicals or preservatives |
Brand name | DEGE |
Item name | WPC Ceiling |
Model | |
Size | 90*50mm |
Material | WPC |
Length | 3000mm |
Color | Gold, Mahogany, Teak, Cedar, Red , classic gay, black |
Minimum order | 350 square meters |
Package | Standard canton |
Water absorption | Less than 1% |
Flame- retardant level | Level B |
Payment term | 30%T/T in advance,remainder 70% paid before shipment |
Delivery period | Within 30 days |
Remark | The color and the size can be changed according to your request |
Application | Indoor |
Features |
1) Dimensional stability, longevity, natural feel |
2) Resistance to rot and crack | |
3) Stable over a wide temperature range, weather-resistant | |
4) Moisture resistant, low flame spread | |
5) High impact resistant | |
6) Outstanding screw and nail retention | |
7) Environmentally friendly, recyclable | |
8) Broad range of finished and appearance | |
9) Easily produced and easily fabricated | |
10) Contains no toxic chemicals or preservatives |
Advantage
Production Process
Applications
Project
Teach you how to Install WPC Ceiling Video
35mm WPC Frames Lines main used to make large picture frames on walls, ceilings and background walls
Accessories

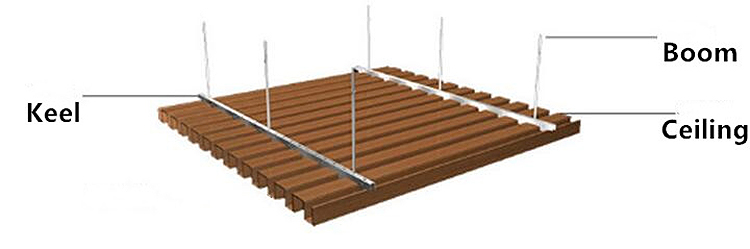

Installation Diagram
1. Fix the boom and keel
2. Insert wpc ceiling pass through a section of keel
3. Fold the other end of the keel into the wpc ceiling
4.Repeat third

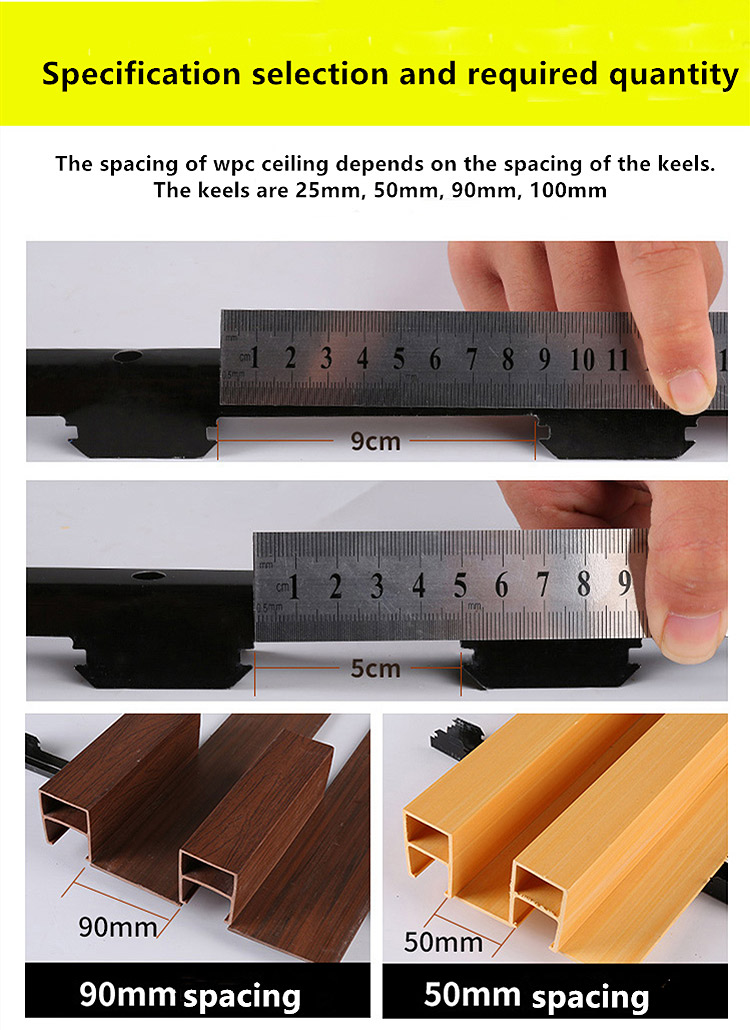

Quantity and Size selection for Ceiling and Accessories
Take 5cm keel ceiling and wpc ceiling 40*45mm as an example
The calculating the amount of 1M2 ceiling:
WPC Ceiling quantity = 1/(0.04M+0.045M)=11.76M
Keel quantity= 1.2 meters keel for 1 square meter ceiling
Note:
0.04 meters is the width of wpc ceiling,
0.045 meters is the distance between the keels
No | Characteristic | Technology Target | Remark | |||||
1 | Appearance | No chipping, cracking, visual texture, delamination, bubbles, shallow embossing, scratches, dirt, poor cut, etc | ENEN649 | |||||
2 | Size mm (23℃) | Length | ± 0.20mm | EN427 | ||||
Wide | ± 0.10mm | EN427 | ||||||
Thickness | +0.13mm, -0.10mm | EN428 | ||||||
Thickness Range | ≤0.15 mm | EN428 | ||||||
wearlay Thickness | ± 0.02 mm | EN429 | ||||||
3 | Squareness mm | ≤ 0.15 | EN427 | |||||
4 | Crook mm | ≤ 0.15 | EN427 | |||||
5 | Microbevel Cut Angle | 8-15 degrees | ||||||
Microbevel Cut Depth | 0.60 – 1.5 mm | |||||||
6 | Dimensional stability after exposure to heat | ≤ 0.12% | EN434 | |||||
7 | Curling after exposure to heat | WPC:≤0.2(70℃/6Hr) | EN434 | |||||
SPC:≤0.2(80℃/6Hr) | ||||||||
8 | Gloss level | nominal value ± 1.5 | Lightmeter | |||||
9 | Taber Abrasion - Minimum | 0.5mm wear lay | ≥5000 cycles Average | EN660 | ||||
10 | Uv | 8~12g/m2 | ||||||
11 | ≥9N | |||||||
SCRATCH PERFORMANCE UV | SCLEROMETER | |||||||
12 | Anti-stain performance | Iodine | 3 | Modified ASTM 92 | ||||
Oil Brown | 0 | |||||||
Mustard | 0 | |||||||
Shope Polish | 2 | |||||||
Blue Sharpie | 1 | |||||||
13 | Determination of flexibility | no crack | EN435 | |||||
14 | Peel Resistance | Length | ≥62.5N/5cm | EN431(62.5N/5cm,100mm/s) | ||||
width | ≥62.5N/5cm | |||||||
15 | Residual indentation (average) mm | ≤0.15 | EN433 | |||||
16 | Color fastness: | ≥7 | ISO105-B2:2002 | |||||
17 | Locking Strength | fsmax ≥2 .5N/mm | ISO24344 |
