China Manufactory Vinyl Flooring

Short Description:

SPC Flooring Specification

Color

1017

Dimension

1220*178*5mm

Thickness         (Optional)

3.8mm, 4mm, 4.2mm, 5mm, 5.5mm, 6mm

Wear Layer       (Optional)

0.2mm, 0.3mm, 0.5mm

Size(Length*Width) (Optional)

910*148mm, 1220*178mm, 1500*228mm, 1800*228mm, etc.


Product Detail

Color Display

Installation

Technical Sheet

Product Tags

Structure

SPC-FLOORING-STRUCTURE
36
41
37
42
38
43
39
44
40
45

Specification

SPC Flooring Specification

Color

1017

Dimension

1220*178*5mm

Thickness         (Optional)

3.8mm, 4mm, 4.2mm, 5mm, 5.5mm, 6mm

Wear Layer       (Optional)

0.2mm, 0.3mm, 0.5mm

Size(Length*Width) (Optional)

910*148mm, 1220*178mm, 1500*228mm, 1800*228mm, etc.

Surface          (Optional)

Crystal, Light/Deep Embossed, Real Wood, Handscraped

Core Materi       Optional

100% virgin material

Click Syste     Optional

Unilin Click, Valinge Lock, Drop Lock(I4F)

Special treatmentOptional)

V-Groove, Soundproof EVA/IXPE

Installation Method

Floating

Size

A. Spc Flooring Plank

spc-flooring-plank

B. Spc Flooring Tile

spc-flooring-tile

SPC Flooring Backing

IXPE-Backing

IXPE Backing

Plain-EVA-Backing

Plain EVA Backing

Finish Types

Carpet-Surface

Carpet Surface

crystal-surface

Crystal Surface

deep-embossed-surface

Deep Embossed Surface

Handscraped-spc-flooring

Handscraped Spc Flooring

Leather-Surface

Leather Surface

Light-Embossed

Light Embossed

Marble-Surface

Marble Surface

Real-Wood

Real Wood

Beveled Edge Types

V-groove

Micro V-Groove Beveled

V-Groove-Painted

V Groove Painted

What is Difference Between the 100% Virgin Spc Flooring and Recycled Spc Flooring ?

0308

Spc Flooring Waterproof Quality Test

Unilin Click

detail
Unilin-Click1

Unilin Click 1

Unilin-Click-2

Unilin Click 2

SPC Floor Packing List

SPC Floor Packing List
Size sqm/pc kgs/sqm pcs/ctn sqm/ctn ctn/pallet pallet/20ft sqm/20ft ctns/20ft Cargo Weight/20ft
910×148*3.8mm 0.13468 7.8 16 2.15488 63ctn/12pallet,     70ctn/12pallet 24 3439.190 1596 27300
910×148*4mm 0.13468 8.2 15 2.02020 63ctn/6pallet,     70ctn/18pallet 24 3309.088 1638 27600
910*148*5mm 0.13468 10.2 12 1.61616 70 24 2715.149 1680 28000
910*148*6mm 0.13468 12.2 10 1.34680 70 24 2262.624 1680 28000
1220*148*4mm 0.18056 8.2 12 2.16672 72ctn/10pallet,     78ctn/10pallet 20 3250.080 1500 27100
1220*148*5mm 0.18056 10.2 10 1.80560 72 20 2600.064 1440 27000
1220*148*6mm 0.18056 12.2 8 1.44448 78 20 2253.390 1560 27900
1220*178*4mm 0.21716 8.2 10 2.17160 75 20 3257.400 1500 27200
1220*178*5mm 0.21716 10.2 8 1.73728 75 20 2605.920 1500 27000
1220*178*6mm 0.21716 12.2 7 1.52012 70ctn/10pallet,     75ctn/10pallet 20 2204.174 1450 27300
600*135*4mm 0.0810 8.2 26 2.10600 72ctn/10pallet,     84ctn/10pallet 20 3285.36 1560 27400
600*300*4mm 0.1800 8.2 12 2.16000 72ctn/6pallet,     78ctn/14pallet 20 3291.84 1524 27400
1500*225*5mm+2mm IXPE 0.3375 10.6 5 1.68750 64 21 2268 1344 24500
1800*225*5mm+1.5mm IXPE 0.4050 10.5 5 2.025 64 18 2332.8 1152 24900
Remarks: The quantity per container can be adjusted according to the limited weight of container for different port.

Advantage

SPC-Floor-Anti-scracth-Test

SPC Floor Anti-scracth Test

SPC-Floor-Fireproof-Test

SPC Floor Fireproof Test

SPC-Floor-Waterproof-Test

SPC Floor Waterproof Test

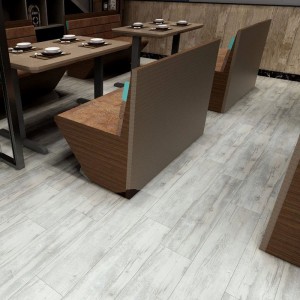

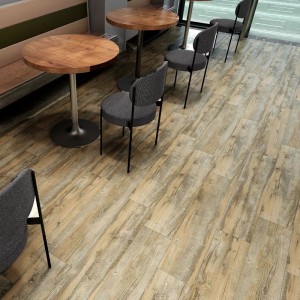

Applications

DE17013-3
IMG_6194(20201011-141102)
Grey-Oak
IMG-20200930-WA0021
IMG_4990(20200928-091524)

Blackbutt Spc Flooring Project in Australia – 1

1
3
2

Spotted Gum Spc Flooring Project in Australia – 2

9
6
8
5
7
4

SPC Floor Protection Process

1-Workshop

1 Workshop

5-SPC-Health-Board

4 SPC Health Board

8-SPC-Click-Macking-Machine

7 SPC Click Macking Machine

11Warehouse

10 Warehouse

2-SPC-Coextrusion-Machine

2 SPC Coextrusion Machine

6-SPC-Quality-Test

5 SPC Quality Test

9-Foam-Adding-Machine

8 Foam Adding Machine

12-Loading

11 Loading

3-UV-Machine

3 UV Machine

7-SPC-Cutting-Machine

6 SPC Cutting Machine/strong>

10-Laboratory

9 Laboratory


  • Previous:
  • Next:

  • about17A. Drop Click Spc Flooring Installation



    about17B. Unilin Click Spc Flooring Installation



    about17SPC FLOORING INSTALLATION METHOD



    1. First, determine how you want the flooring to run. Typically for plank products, the flooring runs the length of the room. There may be exceptions since it is all a matter of preference.

    2. To avoid narrow plank widths or short planks lengths near the walls/ doors, it’s important to do some pre-planning. Using the width of the room, calculate how many full boards will fit into the area and how much space remains that will need to be covered by partial planks. Divide the remaining space by two to calculate the width of the partial planks. Do the same along the length.

    3. Note that the first row of planks does not need to be trimmed in width, it will be necessary to cut off the unsupported tongue so that a clean, solid edge is toward the wall.

    4. 8mm expansion gaps should be kept from the wall during the installation. This will allow space the natural expansion gaps and contraction of the planks.

    5. The planks should be installed from right to left. From the top right corner of the room, put the first plank in place so that both the head and side seam grooves are exposed.

    6. Install the second plank in the first row by angling the short side tongue into the long side groove of the first plank.

    7. To start the second row, cut a plank that is at least 152.4mm shorter than the first plank by inserting the long side tongue into the groove of the plank in the first row.

    8. Install the second plank in the second row by inserting the short side tongue into the previously installed first plank long side groove.

    9. Align the plank so the short side tongue tip is positioned just over the groove lip of the plank in the first row.

    10. Using gentle force and at a 20-30 degree angle, push the short side tongue into the groove of the adjourning plank by sliding along the long side seam. You may need to lift the plank to the right of it slightly to allow for the “sliding” action.

    11. The remaining planks can be installed in the room using the same technique. Make sure the required expansion gaps are maintained against all fixed vertical parts (such as walls, doors, cabinets etc).

    12. The planks can be cut easily with a utility knife, just score the top of the plank and snap the plank in two.

    about17Spc flooring installation design

    installation

    Characteristic Test Specification and Result
    Sizes (in inches) 6×36; 6×48; 7×48; 8×48; 9×48; 12×24; 12×48; 12×36; 18×36
    Thickness 3.8mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm
    Attachment / Backing 1.5mm or 2.0mm IXPE and EVA
    Squareness ASTM F2055 – Passes – 0.010 in. max
    Size and Tolerance ASTM F2055 – Passes – +0.016 in per linear foot
    Thickness ASTM F386 – Passes – Nominal +0.005 in.
    Flexibility ASTM F137 – Passes – ≤1.0 in., no cracks or breaks
    Dimensional Stability ASTM F2199 – Passes – ≤ 0.024 in. per linear foot
    Heavy Metal Presence / Absence EN 71-3 C — Meets Spec​. ​(Lead, Antimony, Arsenic, Barium, Cadmium, Chromium, Mercury and Selenium)​.
    Smoke Generation Resistance EN ISO 9239-1 (Critical Flux) Results 9.1
    Smoke Generation Resistance, Non-Flaming Mode EN ISO
    Flammability ASTM E648- Class 1 Rating
    Residual Indentation ASTM F1914 – Passes – Average less than 8%
    Static Load Limit ASTM-F-970 Passes 1000psi
    Requirements for Wear Group pr EN 660-1 Thickness Loss 0.30<I<0.60 prEN 660-2 Volume Los 7.5<F <15.0
    Slip Resistance ASTM D2047 – Passes – > 0.6 Wet, 0.6 Dry
    Resistance to Light ASTM F1515 – Passes – ∧E ≤ 8
    Resistance to Heat ASTM F1514 – Passes – ∧E ≤ 8
    Electrical Behavior (ESD) EN 1815: 1997 2,0 kV when tested at 23 C+1 C
    Underfloor Heating Suitable for installing over under floor heating​.
    Curling After Exposure to Heat EN 434 < 2mm pass
    Recycled Vinyl Content Approximately 40%
    Recyclability Can be recycled
    Product Warranty 10-Year Commercial & 15-Year Residential
    Floorscore Certified Certificate Provided Upon Request
